Tower of
Tower of
Tower of
Emotions
Emotions
Emotions
Exhibition design
Exhibition design
Exhibition design
My Role
My Role
My Role
Architectural Student
Architectural Student
Client
Client
Client
Building Technologies
Building Technologies
Duration
Duration
Duration
2 Months
2 Months
Team
Team
Team
Pair
Pair
Project Brief
Project Brief
Project Brief
To design an exhibition that reflects contrasting emotions. The overall dimension needs to be 4x4x12m and must explore architectural technologies, construction materials and structural typologies.
To design an exhibition that reflects contrasting emotions. The overall dimension needs to be 4x4x12m and must explore architectural technologies, construction materials and structural typologies.
To design an exhibition that reflects contrasting emotions. The overall dimension needs to be 4x4x12m and must explore architectural technologies, construction materials and structural typologies.
The Design
The Design
The Design
The tower is situated at Barangaroo Reserve where the design expresses themes of liveliness and fun as well as drowning and disorientation, primarily through a bright biophilic open platform in contrast to a dark cold box on the water - which are connected by a coloured mirror installation in between. The folly is mainly comprised of a steel structure that is marine grade to withstand the site’s coastal conditions, and is clad with reflective stainless steel sheets to move light, glass positioned for views, and bamboo to connect to nature.
The tower is situated at Barangaroo Reserve where the design expresses themes of liveliness and fun as well as drowning and disorientation, primarily through a bright biophilic open platform in contrast to a dark cold box on the water - which are connected by a coloured mirror installation in between. The folly is mainly comprised of a steel structure that is marine grade to withstand the site’s coastal conditions, and is clad with reflective stainless steel sheets to move light, glass positioned for views, and bamboo to connect to nature.
The tower is situated at Barangaroo Reserve where the design expresses themes of liveliness and fun as well as drowning and disorientation, primarily through a bright biophilic open platform in contrast to a dark cold box on the water - which are connected by a coloured mirror installation in between. The folly is mainly comprised of a steel structure that is marine grade to withstand the site’s coastal conditions, and is clad with reflective stainless steel sheets to move light, glass positioned for views, and bamboo to connect to nature.

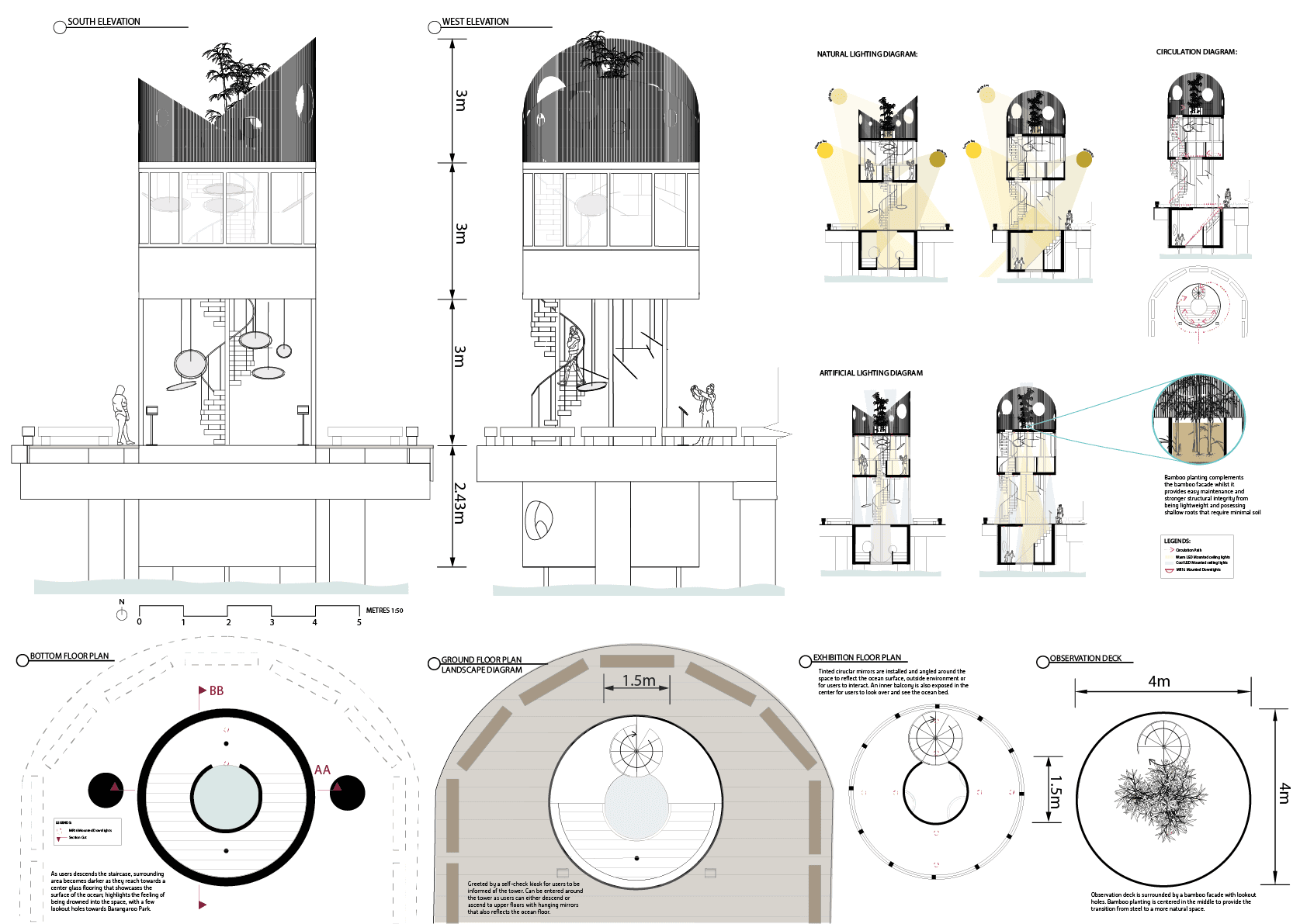

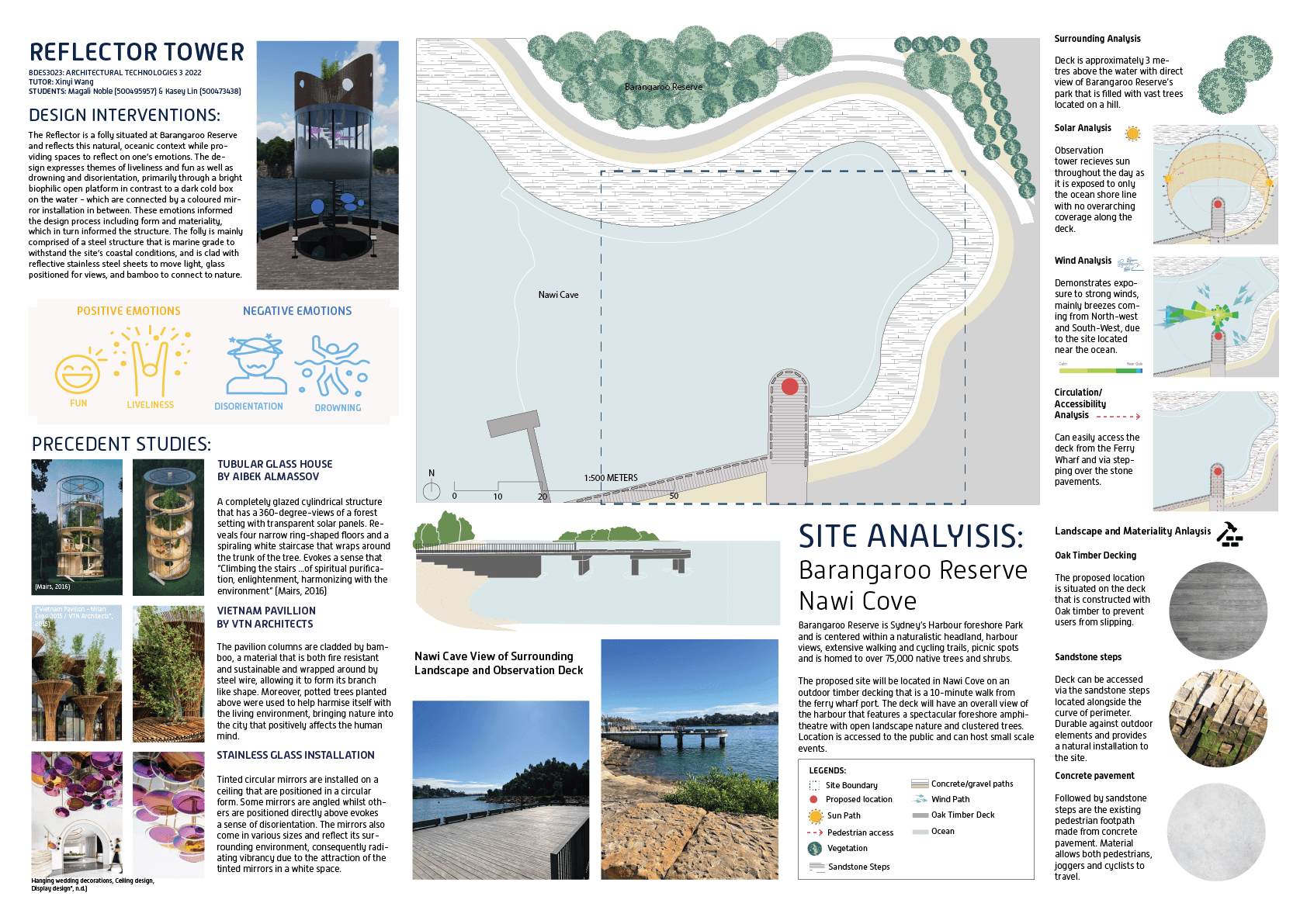

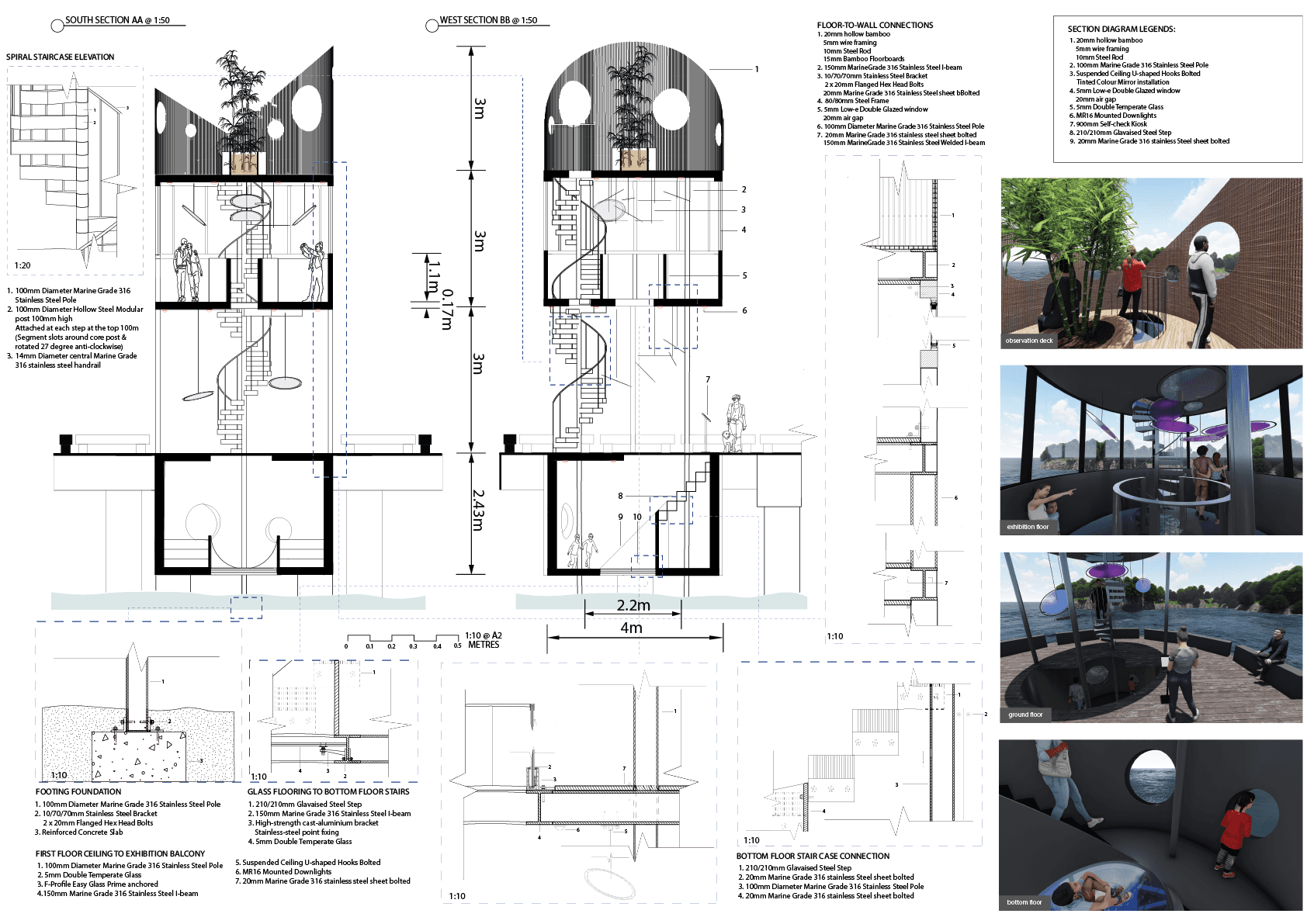

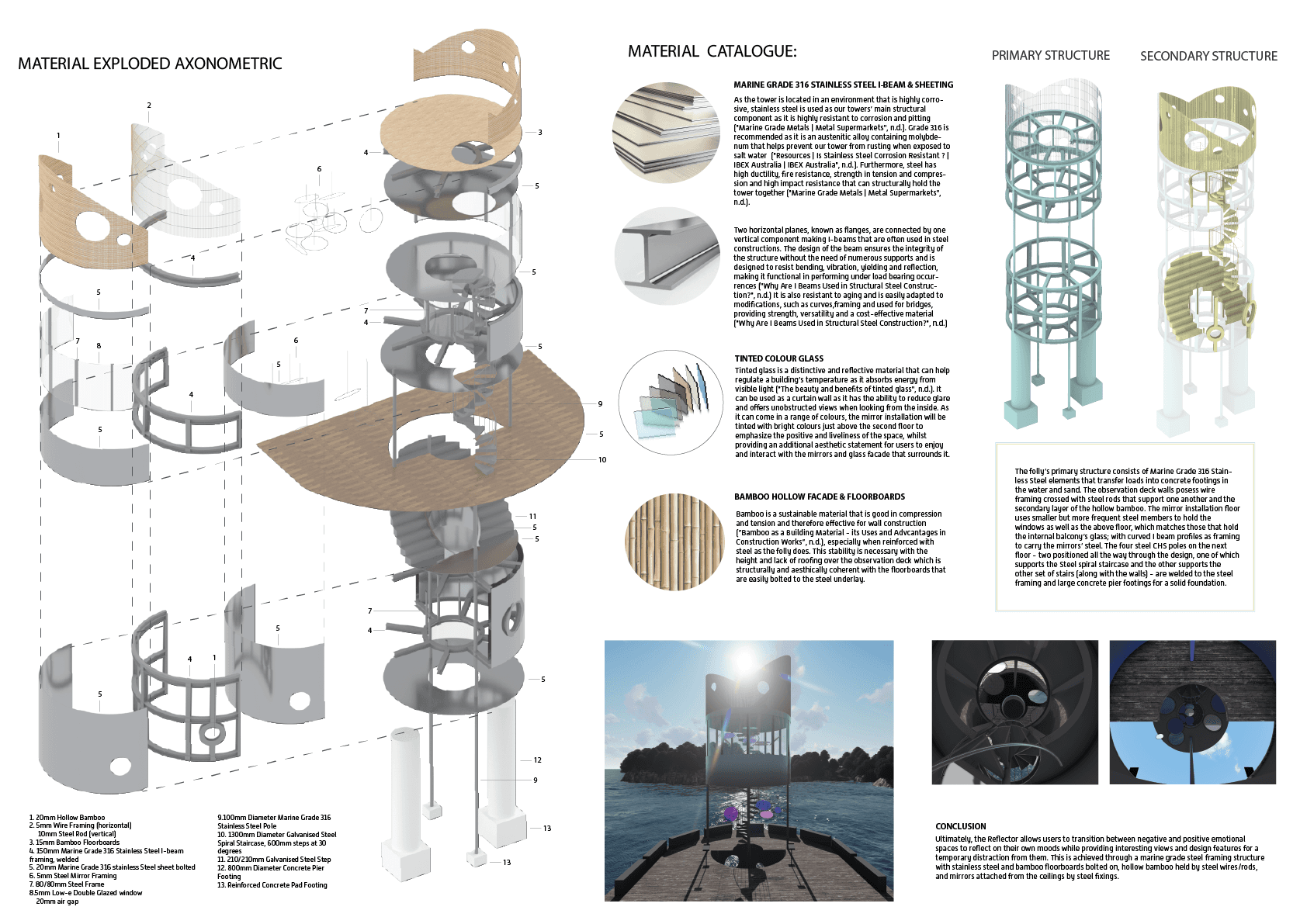

Presentation Panels
Presentation Panels
Presentation Panels
